10W COB LED Down Light

1, Excellent appearance and thanks for the Cold Forging Aluminum Radiator with Unique disspation structure

to guaratee the Light's long lifespan
2, Adopting high quality CREE COB light source, CRI≥80Ra
3, External and Isolated Constant Current Driver with SAA,CE,RoHS, TVB and CB
4, Owing to the above High quality components adopted, the light's lifespan can over 50,000hrs
5, Energy saving: 80% more than traditional lamp
6, Very harmonious Lighting Effect
7, No mercury, no radiation, no ultraviolet ray
8, Operating Temperature:-10℃~+40℃
9, Dimmable and Non dimmable optional. TRIAC Dimmable, C-Bus/CLIPSAL/HPM compatible. It can meet different
places needs
Item No. MD-DLC-10W-C1 Power 10W Input Voltage 220-240VAC/100-240VAC
LED Source Original CREE COB LED Color Temperature 2700K/3000K/4000K/5000K Lumens ≥900lm
CRI ≥80Ra Size

Φ95*H79mm

Cut Out Φ70mm
Beam Angle 30° Frequency 50/60Hz Lifespan ≥35,000hours
Material Aluminum Certificate CE,RoHS,SAA Warranty 3years

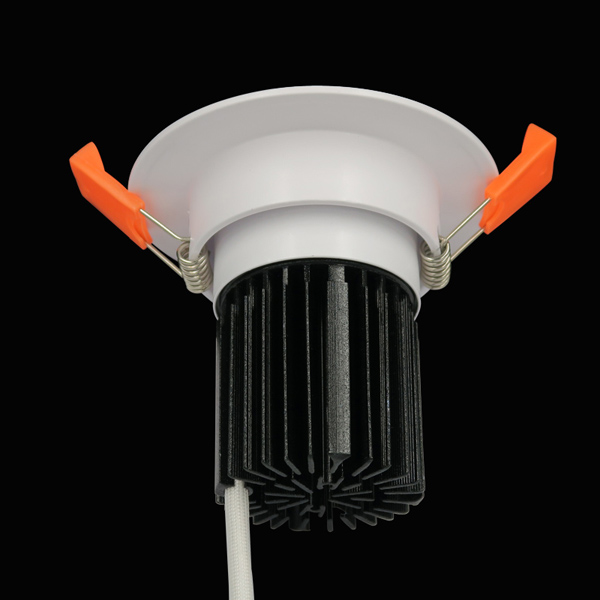

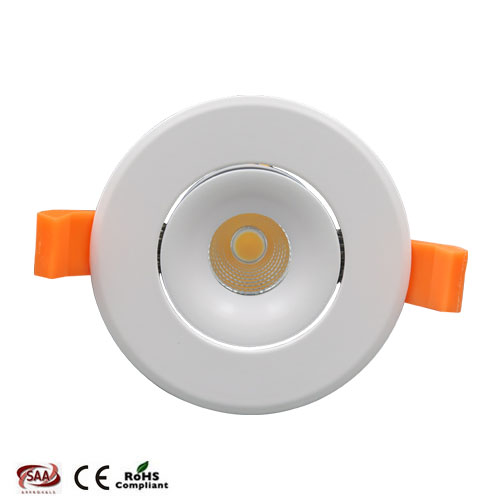

Product details show

Product Installation

I, Dig a proper hole(according to the lamp's Cut-out size) on the ceiling before installation OR remove the traditional downlight fitting;

II, Connect the downlight with the Driver(Connect the Male and Female Joint);

III, Pull the fixation spring up and put the downlight in the hole;

IV, Installation finished.

Application
Supermarket, Hotel, School, House, Restaurant and so on.
