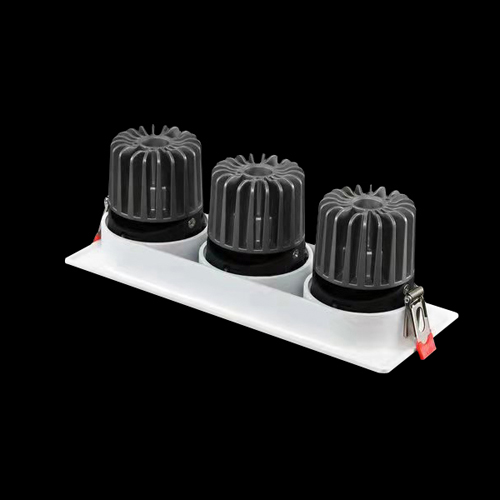

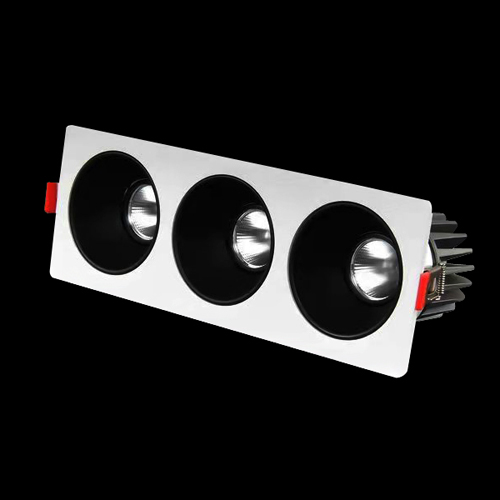

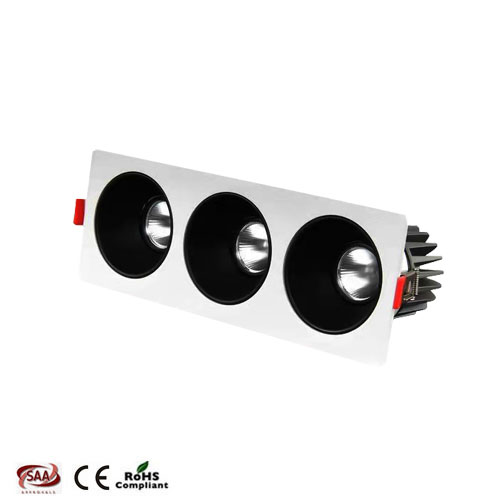

7W*3/12W*3/15W*3/20W*3 COB LED Grille Down Light |
1, Excellent appearance and thanks for the Aluminum with Unique disspation structure |
| to guaratee the Light's long lifespan |
| 2, Adopting high quality CREE COB light source, CRI≥80Ra |
| 3, External and Isolated Constant Current Driver with SAA,CE,RoHS, TVB and CB |
| 4, Owing to the above High quality components adopted, the light's lifespan can over 50,000hrs |
| 5, Energy saving: 80% more than traditional lamp |
| 6, Very harmonious Lighting Effect |
| 7, No mercury, no radiation, no ultraviolet ray |
| 8, Operating Temperature:-10℃~+40℃ |
| 9, Dimmable and Non dimmable optional. TRIAC Dimmable/C-Bus/CLIPSAL/HPM compatible. It can meet different |
| places needs |
|
| Item No. |
MD-GLC-07W-34
|
MD-GLC-12W-34 |
MD-GLC-15W-34 |
MD-GLC-20W-34 |
| Power |
7W*3 |
12W*3 |
15W*3 |
20W*3 |
| Lumens |
≥1995lm |
≥3420lm |
≥4275lm |
≥5700lm |
| Beam Angle |
15°/24°/36° |
15°/24°/36° |
15°/24°/36° |
15°/24°/36° |
| Size |
L247*W88*H70mm |
L247*W88*H85mm |
L247*W88*H102mm |
L318*W115*H87mm |
| Cut Out |
L240*W75mm |
L240*W75mm |
L240*W75mm |
L300*W95mm |
| Warranty |
3years |
3years |
3years |
3years |
| Lifespan |
≥50,000hours |
≥50,000hours |
≥50,000hours |
≥50,000hours |
| CRI |
≥80Ra OR ≥90Ra |
| Input Voltage |
220-240VAC/100-240VAC |
| Frequency |
50/60Hz |
| Color Temperature |
2700K/3000K/4000K/5000K/6000K |
| Material |
Aluminum |
| Certificate |
CE,RoHS,SAA |
| LED Source |
Original CREE COB LED
|
|
Product details show |
|
Product Installation |
I, Dig a proper hole(according to the downlight's Cut-out size) on the ceiling before installation OR remove the traditional downlight fitting;
II, Connect the downlight with the Driver(Connect the Male and Female Joint);
III, Pull the fixation spring up and put the downlight in the hole;
IV, Installation finished. |
|
| Application |
| Supermarket, Hotel, School, House, Restaurant and so on. |
|
|
|
