10W*2/12W*2/15W*2/18W*2/20W*2/25W*2 COB LED Grille Down Light |
1, Excellent appearance and thanks for the 6063 Aviation Aluminum with Unique disspation structure |
| to guaratee the Light's long lifespan |
| 2, Adopting high quality CREE COB light source, CRI≥80Ra |
| 3, External and Isolated Constant Current Driver with SAA,CE,RoHS, TVB and CB |
| 4, Owing to the above High quality components adopted, the light's lifespan can over 50,000hrs |
| 5, Energy saving: 80% more than traditional lamp |
| 6, Very harmonious Lighting Effect |
| 7, No mercury, no radiation, no ultraviolet ray |
| 8, Operating Temperature:-10℃~+40℃ |
| 9, Dimmable and Non dimmable optional. TRIAC Dimmable/C-Bus/CLIPSAL/HPM compatible. It can meet different |
| places needs |
|
| Item No. |
MD-GLC-10W-21 |
MD-GLC-12W-21 |
MD-GLC-15W-21 |
MD-GLC-18W-21 |
MD-GLC-20W-21 |
MD-GLC-25W-21 |
| Power |
10W*2 |
12W*2 |
15W*2 |
18W*2 |
20W*2 |
25W*2 |
| Lumens |
≥1700lm |
≥1800lm |
≥2550lm |
≥2700lm |
≥3400lm |
≥4000lm |
| Beam Angle |
24°/38°/60° |
24°/38°/60° |
15°/24°/40° |
15°/24°/40° |
15°/24°/40° |
15°/24°/40° |
| Size |
L210*W115*H95mm |
L210*W115*H95mm |
L250*W135*H120mm |
L250*W135*H120mm |
L250*W135*H130mm |
L250*W135*H130mm |
| Cut Out |
L190*W95mm |
L190*W95mm |
L230*W115mm |
L230*W115mm |
L230*W115mm |
L230*W115mm |
| Warranty |
4years(10W*2) |
3years(12W*2) |
4years(15W*2) |
3years(18W*2) |
4years(20W*2) |
3years(25W*2) |
| Lifespan |
≥50,000hours |
≥35,000hours |
≥50,000hours |
≥35,000hours |
≥50,000hours |
≥35,000hours |
| CRI |
≥80Ra |
| Input Voltage |
220-240VAC/100-240VAC |
| Frequency |
50/60Hz |
| Color Temperature |
2700K/3000K/4000K/5000K |
| Material |
6063 Aluminum |
| Certificate |
CE,RoHS,SAA |
| LED Source |
Original CREE COB LED
|
|

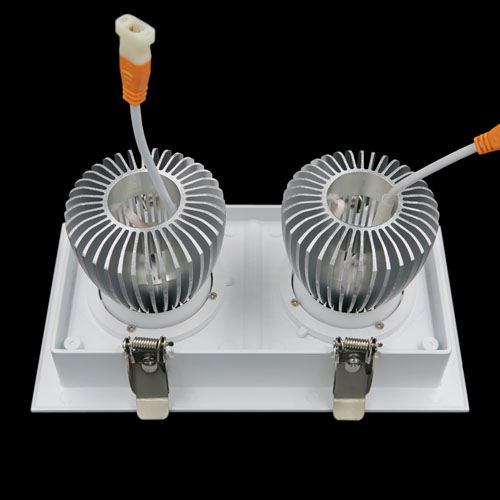

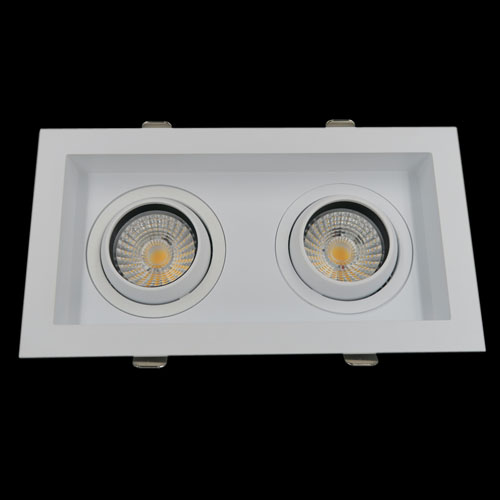

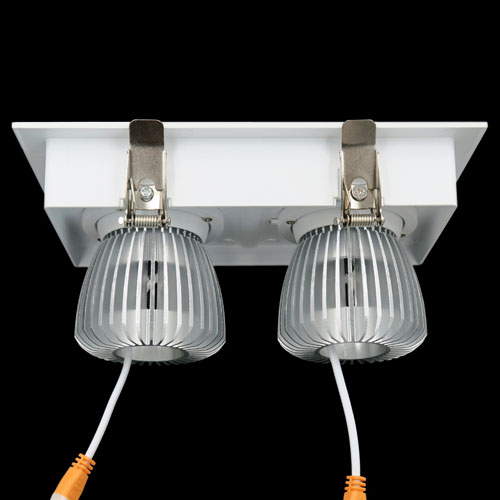

Product details show |
|
Product Installation |
I, Dig a proper hole(according to the downlight's Cut-out size) on the ceiling before installation OR remove the traditional downlight fitting;
II, Connect the downlight with the Driver(Connect the Male and Female Joint);
III, Pull the fixation spring up and put the downlight in the hole;
IV, Installation finished. |
|
| Application |
| Supermarket, Hotel, School, House, Restaurant and so on. |
|
|
|
