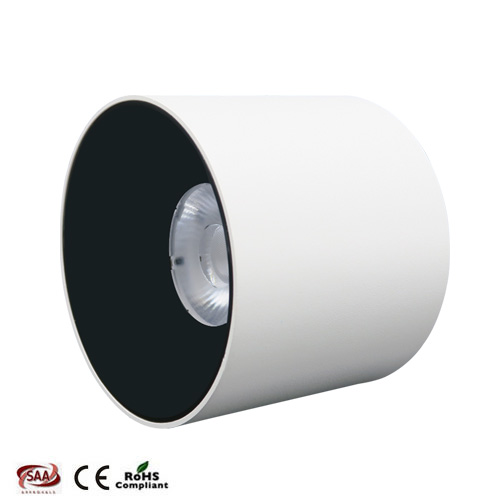

10W/12W/15W COB LED Surface Mount Down Light |
1, Excellent appearance and thanks for the Die-casting Aluminum with Unique disspation structure |
| to guaratee the Light's long lifespan |
| 2, Adopting high quality CREE COB light source, CRI≥80Ra |
| 3, External and Isolated Constant Current Driver with SAA,CE,RoHS, TVB and CB |
| 4, Owing to the above High quality components adopted, the light's lifespan can over 50,000hrs |
| 5, Energy saving: 80% more than traditional lamp |
| 6, Very harmonious Lighting Effect |
| 7, No mercury, no radiation, no ultraviolet ray |
| 8, Operating Temperature:-10℃~+40℃ |
| 9, Dimmable and Non dimmable optional. TRIAC Dimmable, C-Bus/CLIPSAL/HPM compatible. It can meet different |
| places needs |
|
| Item No. |
MD-MDLC-10W-04
MD-MDLC-12W-04
MD-MDLC-15W-04 |
Power |
10W
12W
15W |
Lumens |
≥950lm
≥1140lm
≥1425lm |
| Size |
Φ96*H90mm |
Color Temperature |
2700K/3000K/4000K/5000K |
Cut Out |
Surface Mount |
| CRI |
≥80Ra |
LED Source |
CREE OR EPISTAR |
Input Voltage |
200-240V AC
|
| Beam Angle |
15°/24°/36°/55° |
Frequency |
50/60Hz |
Lifespan |
≥50,000hours |
| Material |
Aluminum |
Certificate |
CE,RoHS,SAA |
Warranty |
3years |
|

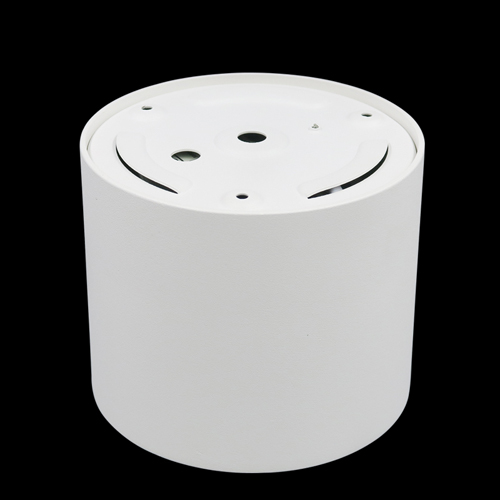

Product details show |
|
|
Product Installation |
|
| Application |
| Supermarket, Kitchen, Living Room, Clothing Shop, Exhibition Hall and so on. |
|
|
|
