10W*3/13W*3/15W*3/20W*3/25W*3/30W*3 COB LED Scoop Grille Down Light |
1, Excellent appearance and thanks for the Die-casting Aluminum with Unique disspation structure |
| to guaratee the Light's long lifespan |
| 2, Adopting high quality CREE COB light source, CRI≥80Ra |
| 3, External and Isolated Constant Current Driver with SAA,CE,RoHS, TVB and CB |
| 4, Owing to the above High quality components adopted, the light's lifespan can over 50,000hrs |
| 5, Energy saving: 80% more than traditional lamp |
| 6, Very harmonious Lighting Effect |
| 7, No mercury, no radiation, no ultraviolet ray |
| 8, Operating Temperature:-10℃~+40℃ |
| 9, Dimmable and Non dimmable optional. TRIAC Dimmable/C-Bus/CLIPSAL/HPM compatible. It can meet different |
| places needs |
|
| Item No. |
MD-SDLC-10W-31 |
MD-SDLC-13W-31 |
MD-SDLC-15W-31 |
MD-SDLC-20W-31 |
MD-SDLC-25W-21 |
MD-SDLC-30W-21 |
| Power |
10W*3 |
13W*3 |
15W*3 |
20W*3 |
25W*3 |
30W*3 |
| Lumens |
≥2700lm |
≥3315lm |
≥4050lm |
≥5100lm |
≥6750lm |
≥7650lm |
| Beam Angle |
15°/24°/38°/60° |
15°/24°/38°/60° |
15°/24°/38°/60° |
15°/24°/38°/60° |
15°/24°/38°/60° |
15°/24°/38°/60° |
| Size |
L350*W115*H95mm |
L350*W115*H95mm |
L417*W138*H125mm |
L417*W138*H125mm |
L495*W163*H145mm |
L495*W163*H145mm |
| Cut Out |
L335*W100mm |
L335*W100mm |
L400*W125mm |
L400*W125mm |
L480*W150mm |
L480*W150mm |
| Warranty |
4years(10W*3) |
3years(13W*3) |
4years(15W*3) |
3years(20W*3) |
4years(25W*3) |
3years(30W*3) |
| Lifespan |
≥50,000hours |
≥35,000hours |
≥50,000hours |
≥35,000hours |
≥50,000hours |
≥35,000hours |
| CRI |
≥80Ra |
| Input Voltage |
220-240VAC/100-240VAC |
| Frequency |
50/60Hz |
| Color Temperature |
2700K/3000K/4000K/5000K |
| Material |
Aluminum |
| Certificate |
CE,RoHS,SAA |
| LED Source |
Original CREE COB LED
|
|

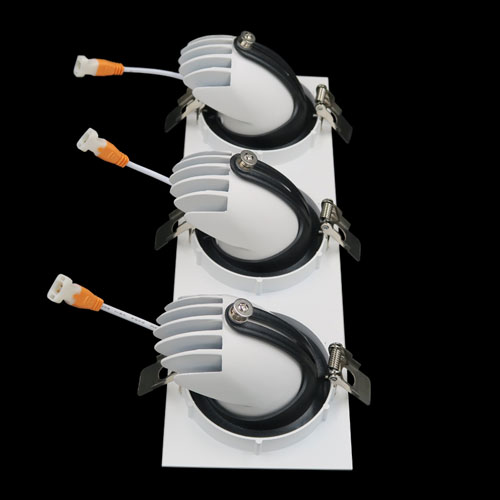

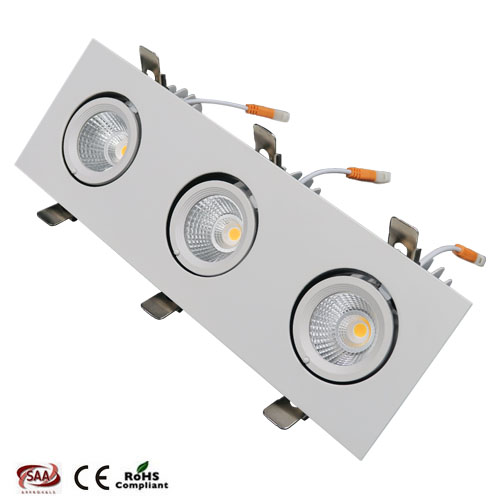

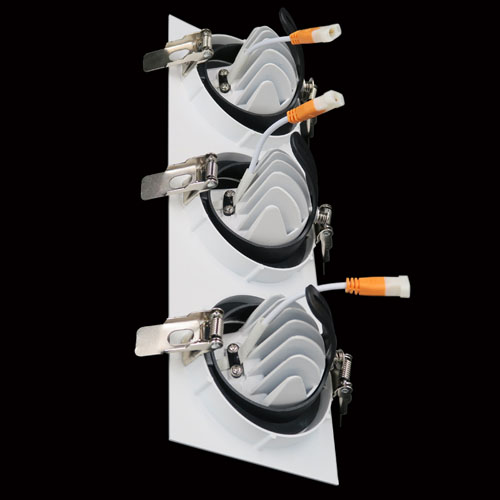

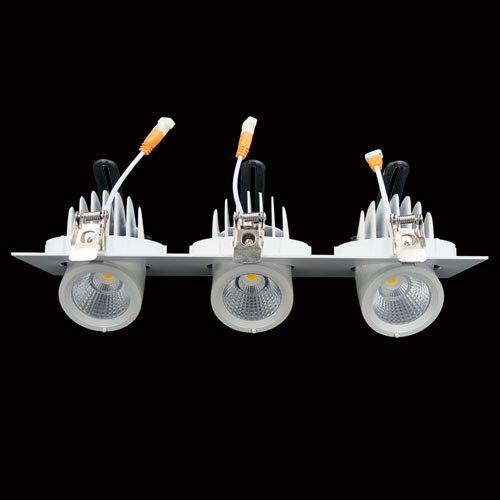

Product details show |
|
Product Installation |
I, Dig a proper hole(according to the downlight's Cut-out size) on the ceiling before installation OR remove the traditional downlight fitting;
II, Connect the downlight with the Driver(Connect the Male and Female Joint);
III, Pull the fixation spring up and put the downlight in the hole;
IV, Installation finished. |
|
| Application |
| Supermarket, Hotel, School, House, Restaurant and so on. |
|
|
|
