40W SMD LED Down Light |
1, Excellent appearance and thanks for the Die-casting Aluminum with Unique disspation |
structure to guaratee the Light's long lifespan |
2, Adopting high quality SMD LED light source, CRI≥80Ra |
3, External and Isolated Constant Current Driver with SAA,CE,RoHS, TVB and CB |
4, Owing to the above High quality components adopted, the light's lifespan can over 50,000hrs |
5, Energy saving: 80% more than traditional lamp |
6, Very harmonious Lighting Effect |
7, No mercury, no radiation, no ultraviolet ray |
8, Operating Temperature:-10℃~+40℃ |
9, Dimmable and Non dimmable optional. TRIAC Dimmable, C-Bus/CLIPSAL/HPM compatible. It can meet different |
places needs |
|
Item No. |
MD-SDLS-40W-01 |
Power |
40W |
Input Voltage |
220-240VAC |
LED Source |
SMD2835 |
Color Temperature |
WW(2700K-3200K)/NW(4000K-4500K)/CW(6000K-6500K) |
Lumens |
≥4000lm |
CRI |
≥80Ra |
Lamp Size |
L245mm*W150mm |
Cut Out |
L230*W130mm
|
Beam Angle |
120° |
Dimmable |
Yes or No as customer's request |
Frequency |
50/60Hz |
Housing Color |
White Finish / Black Finish |
Certificate |
CE,RoHS,SAA |
Warranty |
3years |
|

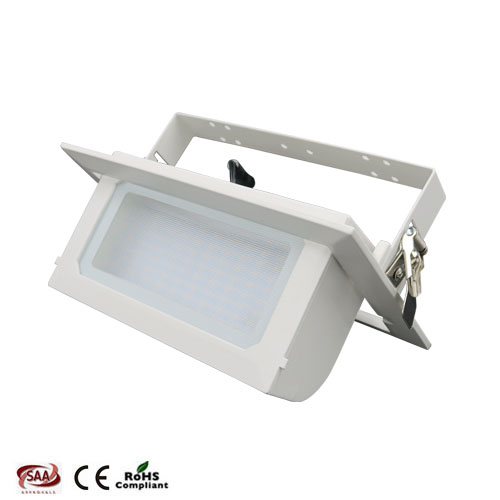

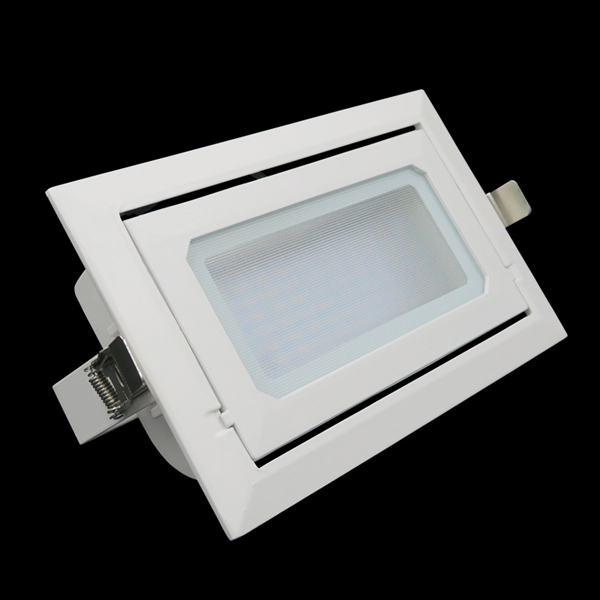

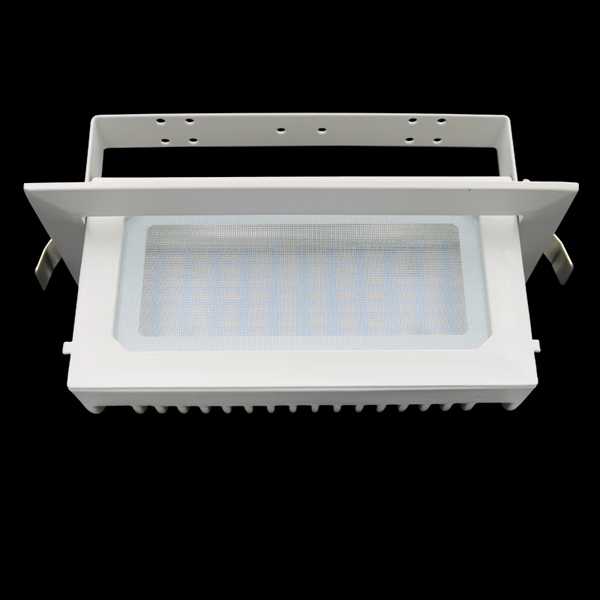

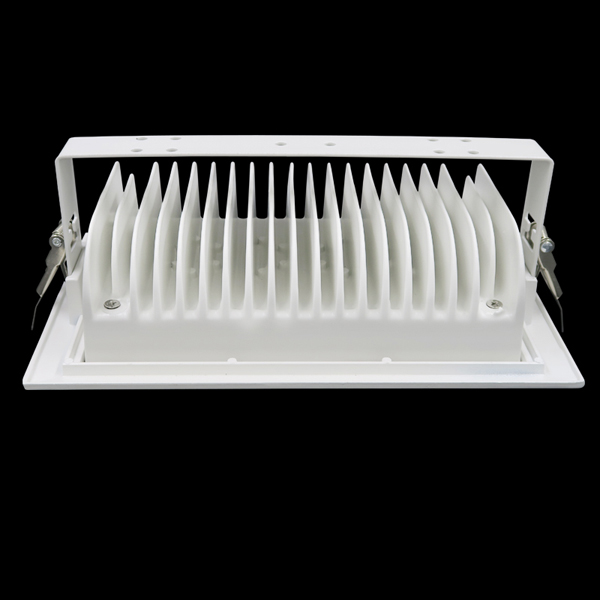

Product details show |
|
Product Installation |
I, Dig a proper hole(according to the lamp's Cut-out size) on the ceiling before installation OR remove the traditional downlight fitting;
II, Connect the downlight with the Driver(Connect the Male and Female Joint);
III, Pull the fixation spring up and put the downlight in the hole;
IV, Installation finished. |
|

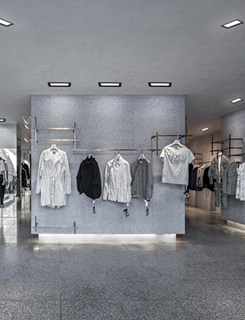

Application |
Shopping mall, Hotel, Commercial Center, House, Office, Clothing Store, Home and so on. |
|
|
|
